MCU
SENSOR
ML MODEL
intermediate

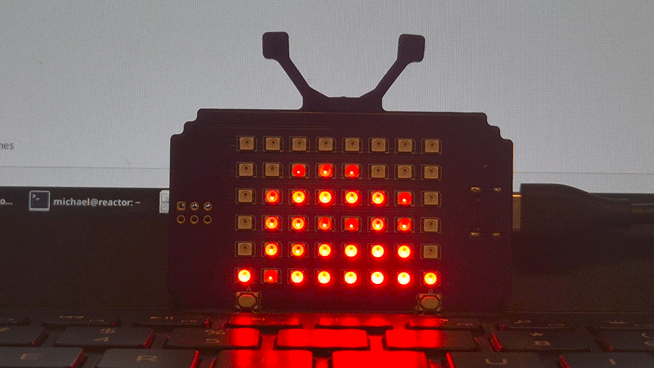

KiCAD Hardware Design Files:
https://github.com/thedeveco/devOSH/tree/main/Projects/b3vy_led
B3VY Website:https://b3vy.com/stream
Opensauce Website:https://opensauce.com/
DevOSH Github Repository:https://github.com/thedeveco/devOSH
Parts List16 items
| Component | Qty | Notes |
|---|---|---|
| ESP32-S3-MINI-1 | 1 | WiFi MCU |
| 74AHCT1G125 | 1 | Level translating buffer |
| XC6222B331MR-G | 1 | 3.3V LDO regulator |
| SK6805 | 48 | Neopixels |
| DRTR5V0U4S | 1 | USB ESD protection |
| 0.1uF 0402 | 1 | — |
| 1uF 0603 | 1 | — |
| 0.01uF 0603 | 1 | — |
| 10uF 0805 | 10 | — |
| 0.1uF 0603 | 1 | — |
| TYPE-C-31-M-12 | 1 | USB connect |
| 27ohm 0402 | 2 | — |
| 5.1K 0402 | 2 | — |
| 1M 0603 | 1 | — |
| 10K 0603 | 2 | — |
| PTS810 | 4 | Tactile switches |
Tools Required5
Hot plate
Hot air rework station
Soldering iron
Inspection microscope
Kicad
